M8X34 Sprocket Bolt Set Vintage Bikes: Honda, Yamaha, Suzuki, Kawasaki

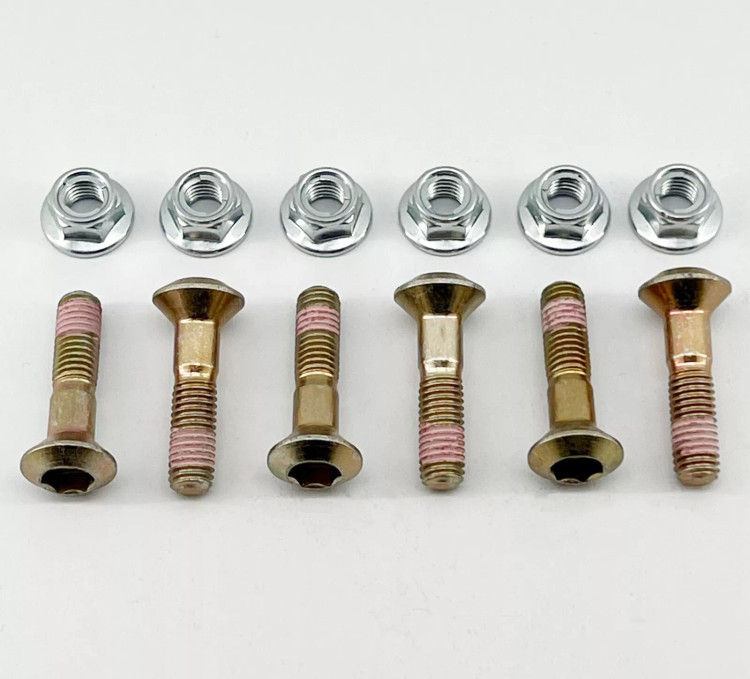

Socket Head M8x34 Gold Zinc Plated Sprocket Bolt Kit with medium strength loctite on the threaded portion. Complete with fuji locking flange nuts.

This M8x34 is most commonly used on the MX bikes from the 80 and is correct for many Honda, Yamaha, Suzuki, Kawasaki and KTM off road motorcycle models.



Back in the days of drum brakes and air-cooled engines, a lot of our favorite off-road motorcycles came with M8x34 Rear Sprocket Bolts. These days its getting hard to find these longer sprocket bolts that were used on the older bikes. That's why Specbolt came out with these all new M8x34 OEM Upgrade Rear Sprocket Bolts. 10.9 Grade gold/yellow zinc plating with medium strength thread-lock already applied. Matched with our tough reusable Fuji type locking flange nuts, you've got a combination that will give you years of service. Designed Primarily for Vintage MX Dirt bikes that need 34mm long sprocket bolts, these can be used to replace most any 28mm to 34mm long M8 rear sprocket bolts. Among others, these are great replacements for many of the Vintage Honda CR, CRF-R, CRF-X, CRF-F, XR-R models. Perfect upgrade for Honda CR models made in the late 70s & up that require longer than todays standard (28-30mm long) sprocket bolt. A few examples are as follows:

HONDA MODELS OEM equivalent # 90125-KA4-000, 90125-430-010, & 90125-430-000 fits: 1983 - 1984 CR60 1982 - 1984 CR80 1979 - UP CR125 1978 - UP CR250 1981 - CR450 1982 - 1983 CR480 1992 - 2001 CR500 1985 - 2003 XR80R 1985 - 2003 XR100R 1998 - 2004 XR250R 1998 -2004 XR400R 2000 - 2007 XR650R 2004 - 2013 CRF100F 2013 - 2024 CRF110F 2003 - 2024 CFR150F 2007 - 2024 CRF150R 2004 - CRF250R 2004 - CRF250X 2003 - CRF230F 2003 - 2024 CRF450R 2005 - CRF450X

KAWASAKI MODELS: OEM SPROCKET BOLT PART # 92002-1387 fits: 1985 - 1988 KX125 1986 - 1988 KDX200 1985 - 1988 KX250 1985 - 1988 KX500

SUZUKI MODELS: OEM equivalent # 09120-08003 fits: 1976 - 1978 RM100 1975 - 1991 RM125 1976 - 1992 RM250 1976 - 1977 RM370 1978 -1980 RM400 1981 - 1982 RM465 #09120-08009 fits 1983 - 1984 RM500 #09120-08004 fits: 1979 - 1981 RM100 1979 - 1991 RM125 1980 - 1992 RM250 1989 - 1998 RMX250 1980 RM400 1981 - 1982 RM465 1990 - 1999 DR350 2001 - 2007 DR-Z250

YAMAHA MODELS: OEM equivalent # 90110-08038-00 fits: 1981 - 1984 IT 175, 250, 465, 490 1981 - 1982 YZ 125, 250 465, 490 # 90109-08552-00 fits: 1980 YZ 125G YZ 250G # 90109-08706-00 fits: 1984 - 1986 IT200 1984 - 1994 YZ80 2002 - 2008 YZ85 1983 - 1985 YZ125 1983 - 1987 YZ250 1983 - 1990 YZ490 1983 - 1986 TT600 1986 - 1987 TT350 1999 -2006 TTR250 # 90109-081G2-00 fits: 1995 - 2001 YZ80 2003 TTR225
